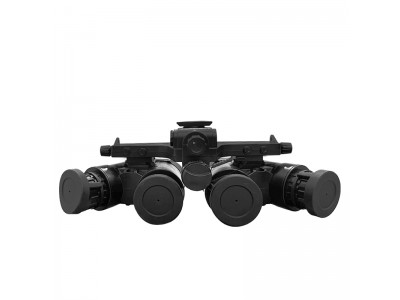

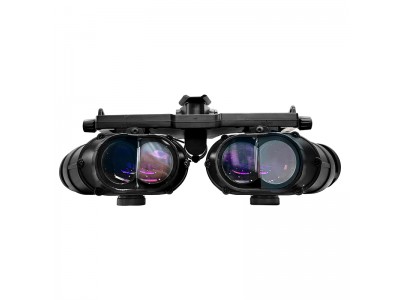

產品簡介Product Introduction：

夜視儀主機掛架上配有電池(可選）,，輔助供電的電池盒（可選）,，通過標準DC電纜與主機相連,。它配有一個可用四個2.8-4.2伏CR123A電池的電池組,，這些電池可以為該裝置供電大約50-80小時（不開IR的情況下）,。遠程電池組不但可以為主機供電,，還作為配重提供輔助功能,。

The night vision instrument host is equipped with a battery (optional) on the rack, and an auxiliary power supply battery box (optional) is connected to the host through a standard DC cable. It is equipped with a battery pack that can accommodate four 2.8-4.2 volt CR123A batteries, which can power the device for approximately 50-80 hours (without turning on IR). Remote battery packs not only provide power to the host, but also serve as auxiliary functions for counterweights.

產品參數Product parameters：

型號model

DKGPNVG18

DKGPNVG18+

外觀樣式 Appearance style

四目全景Four view panoramic view

四目全景Four view panoramic view

增像管級別

Level of image intensifier tube

2代+（Gen2+）

準3代

分辨率(線對，lp/mm) resolving power

60-64

64-72

品質因數（FOM值）quality factor

1400-1800

1600-2300

靈敏度（微安/流明,，µ A/lm）

sensitivity

700-1000

850-1200

信噪比 Signal-to-noise ratio

23-28

28-32

亮度增益（cd/㎡/lx）Brightness gain

8000-12000

10000-20000

陰極面類型Type of Yin Pole Surface

S25

GaAs

鏡片鍍膜 Lens coating

超寬帶多層增透膜Ultra wideband multilayer anti reflective film

供電方式

Power supply method

鋰電池(CR123x1,，可選)/CR123x4 外接電池盒

Lithium battery (CR123x1, optional)/CR123x4 external battery box

電池電壓范圍Battery voltage range

2.8-4.2V

2.8-4.2V

安裝方式

Installation method

頭戴式（標準美式頭盔接口）

Head worn (standard American helmet interface)

控制方式 control mode

ON/IR/OFF

ON/IR/OFF

整機功耗 Power consumption of the entire machine

<0.2W

<0.2W

電池容量 Battery capacity

700-2800maH

700-2800maH

電池壽命 Battery life

30-80H

30-80H

光學倍率 Optical power

1X

1X

全視場 Full field of view

120x50 +/-2 度

120x50 +/-2 度

焦距 focal length

22.5

22.5

光軸平行度

Parallelism of optical axis

<0.1度

<0.1度

亮度增益 Brightness gain

自動

自動

光通孔徑 Optical aperture

F1.2  22.5mm

F1.2  22.5mm

光學MTF  Optical MTF

120LP/mm

120LP/mm

光學畸變 Optical distortion

<1%

<1%

相對照度 Relative Illumination

>75%

>75%

調焦范圍 focusing range

250mm-∞

250mm-∞

調焦方式 Focus Mode

手動

手動

目鏡出瞳距離 Eyepiece exit distance

36

36

目鏡出瞳孔徑

Eyepiece exit pupil aperture

7mm

7mm

視度范圍 Visual range

+2~-2

+2~-2

目間距調節方式

Eye spacing adjustment method

任意連續可調

Any continuously adjustable

任意連續可調

Any continuously adjustable

目距調節范圍

Eye distance adjustment range

58-72mm

58-72mm

目間距鎖定方式

Eye spacing locking method

手動鎖定

Manual locking

手動鎖定

Manual locking

輔助光源 Auxiliary light source

850nm 20mW

850nm 20mW

適用溫度 Applicable temperature

-40--+55℃

-40--+55℃

濕度范圍 Humidity range

5%-95%

5%-95%

防水等級 Waterproof level

IP65/IP67

IP65/IP67

產品尺寸 Product size

245x129x90

245x129x90

產品重量（無電池）

Product weight (without battery)

912g

912g
