產品參數

Product parameters：

型號 model

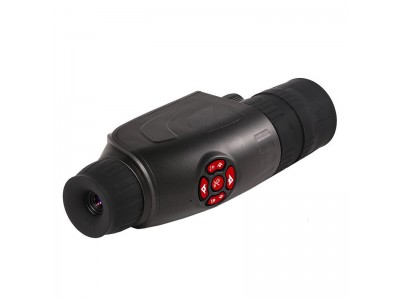

DM1920-5X

外觀樣式 Appearance style

單目單筒 Monocular cylinder

傳感器分辨率Sensor resolution

1920x1080

放大倍率 Magnification rate

5-30連續變倍 5-30 continuous doubling

視場角度（度,，°）（D,、H、V分別是對角,、水平,、垂直三個方向Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=7.36 H=5.9 V=4.4

焦距focal length

50

視度調節范圍（屈光度）Visual adjustment range

+5°/-5°

物鏡直徑 Objective diameter

50mm

錄像質量 Recording quality

1920x1080

照片質量 Photo quality

1920x1080

觀察模式 Observation mode

晝/夜兩種模式（彩色/黑白）

Two modes of day/night (color/black and white)

夜間模式擋位 Night mode gear

1-4擋（N1/N2/N3/N4）

屏幕亮度調節 Screen brightness adjustment

有（1-3擋）yes

電池種類 Battery type

ICR26500鋰電池（1節）ICR26500 lithium battery (1 unit)

電池電壓范圍 Battery voltage range

2.6-4.2V

其他電源方式

 Other power supply methods

支持（如充電寶、直流電,、車載電源等）

Support (such as power bank, DC, car power supply, etc.)

低電指示 Low battery indication

有yes

TF內存卡端口 TF memory card port

有yes（支持4G-128G）

USB端口 USB port

有yes

HDMI視頻端口  HDMI video port

有yes

WiFi連接手機APP

WiFi connection to mobile app

支持iOS & Android (圖像視頻傳輸/遠程遙控)可一對多Supports iOS&Android (image and video transmission/remote control) for one to many

WIFI連接APP有效距離

Effective distance of WIFI connection to APP

20米內

Within 20 meters

GPS

有yes

聲音記錄 Sound recording

有yes

日期記錄 Date Record

有yes

語言選擇 Language selection

中文,、英文 Chinese, English

防塵防水等級 Protection grade

生活防水 Domestic waterproofing

外接三腳架 External tripod

支持（1/4螺絲） Support (1/4 screw)

產品尺寸 Product size

226X95X59mm

重量 weight

644克/ 644g
